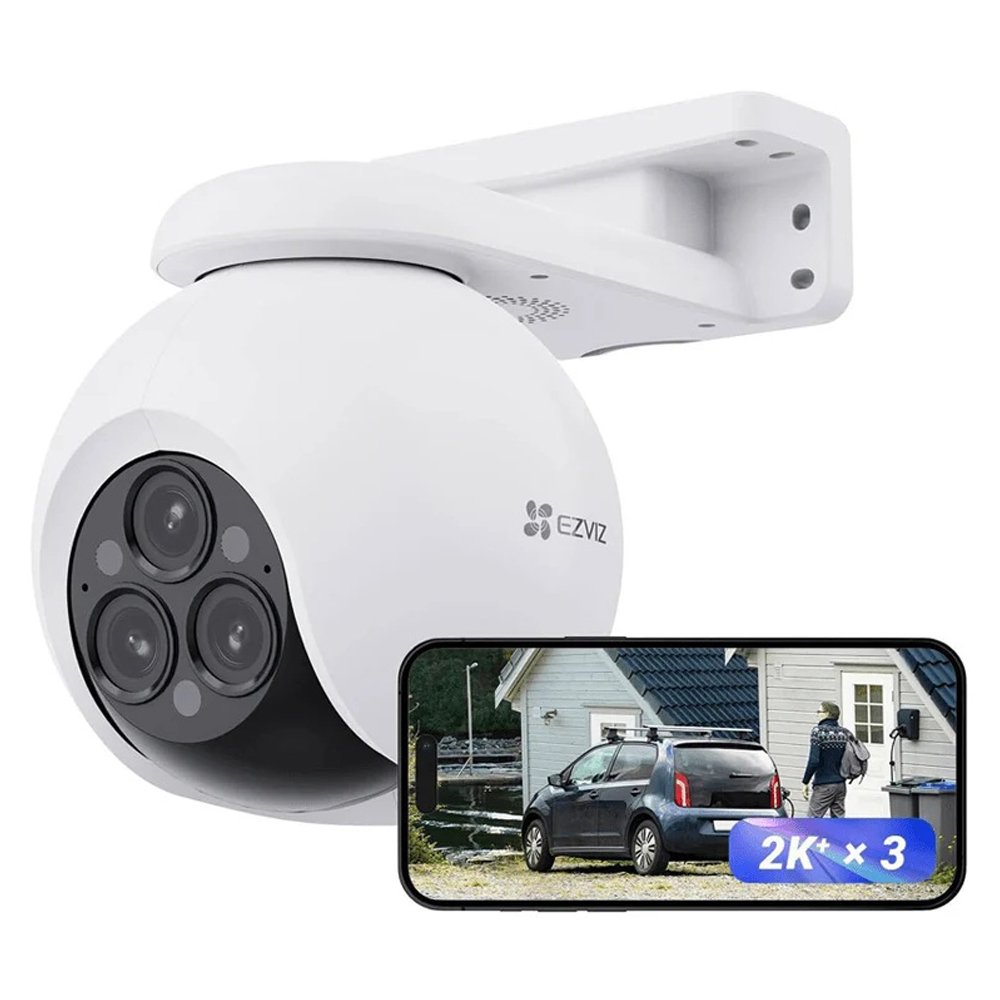

H80f Multi 2K⁺
See, zoom and protect, like never before
Specifications
| Specifications | |
|---|---|
| Model | CS-H80f-R100-8G444WKFL |
| Camera | |
| Image Sensor | 1/3” Progressive Scan CMOS * 3 |
| Shutter Speed | Self-adaptive shutter |
| Lens | 2.8mm @ F1.6, viewing angle: 54° (Vertical), 96° (Horizontal), 110° (Diagonal) 6mm @ F1.6, viewing angle: 28° (Vertical), 52° (Horizontal), 60° (Diagonal) 12mm @ F1.6, viewing angle: 14° (Vertical), 25° (Horizontal), 29° (Diagonal) |
| PT Angle | Pan: 340°, Tilt: 70° |
| Minimum Illumination | 0.05 Lux @ (F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories) |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto-switching |
| DNR | 3D DNR |
| WDR | Digital WDR |
| BLC | Supports |
| Night Vision | 30 m / 98 ft |
| Video & Audio | |
| Max. Resolution | 2560 × 1440 |
| Frame Rate | Self-adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| H.265 Type | Main Profile |
| Video Bit Rate | Quad HD; Full HD;HD adaptive bit rate |
| Audio Bit Rate | Self-adaptive |
| Network | |
| Wi-Fi Standard | IEEE802.11b , 802.11g , 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20MHz |
| Security | 64 / 128 – bit WEP , WPA / WPA2 , WPA-PSK / WPA2-PSK |
| Transmission Rate | 11b : 11Mbps , 11g : 54Mbps , 11n : 150Mbps |
| Wi-Fi Pairing | AP pairing |
| Protocol | EZVIZ cloud proprietary protocol |
| Interface Protocol | EZVIZ cloud proprietary protocol |
| Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
| Function | |
| Smart Alarm | AI-Powered Human Shape Detection / Vehicle |
| Customized Alert Area | Detection |
| Two-Way Talk | Supports |
| Auto Zoom Tracking | Supports |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
| Storage | |
| Local Storage | Supports microSD card (Max. 512 GB) |
| Cloud Storage | Supports EZVIZ CloudPlay storage (subscription required) |
| General | |
| Operating Conditions | -30°C to 50°C, Humidity 95% or less (non-condensing) |
| IP Grade | IP67 |
| Power Supply | DC 12 V / 1.5 A |
| Power Consumption | Max. 18 W |

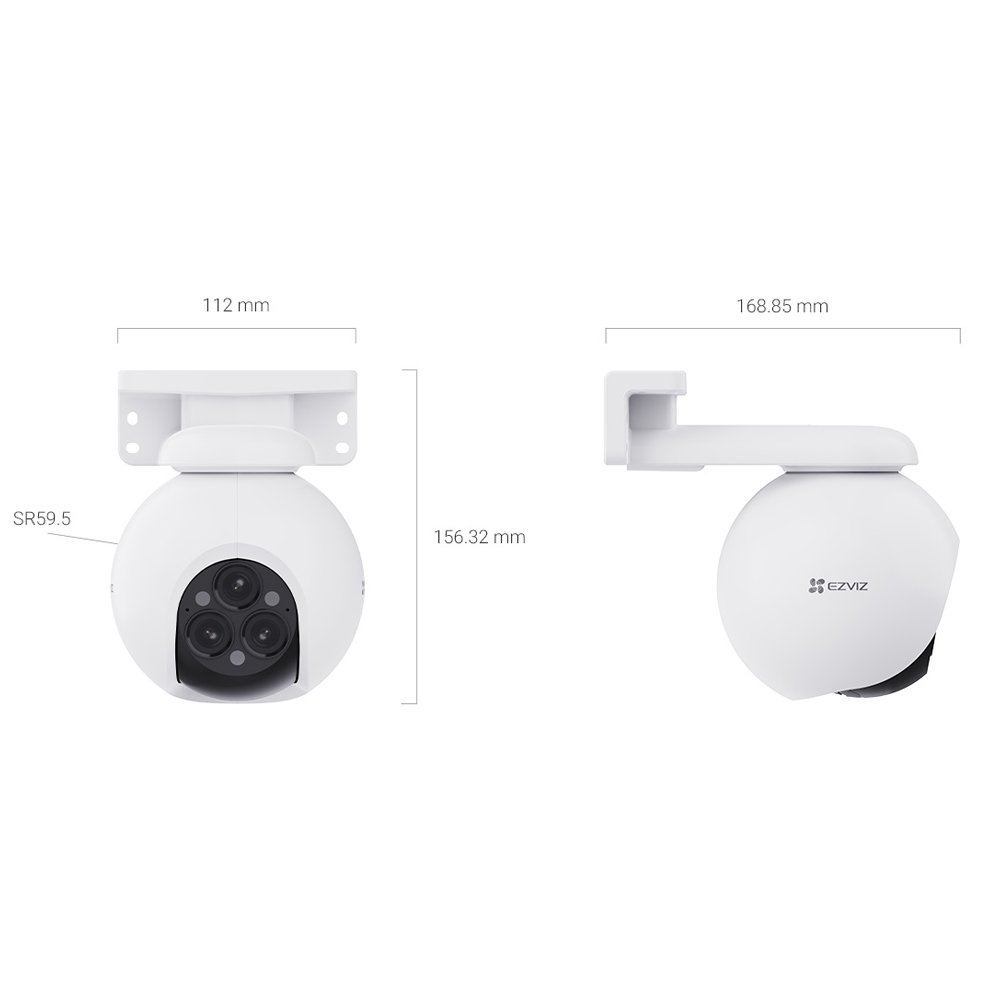

| Dimensions | 168 × 112 × 156 mm (6.61 × 4.41 × 6.14 inch) |
| Packaging Dimensions | 205 × 176 × 194 mm (8.07 × 6.93 × 7.64 inch) |
| Weight | Product : 575.7 g (20.31oz) With package : 979.89 g (34.56oz) |
| In the box | |
| In the box | – Camera |
| – Drill Template | |
| – Waterproof Kit | |
| – Screw Kit | |
| – Power Adapter | |
| – Regulatory Information × 2 | |
| – Quick Start Guide | |
| Certifications | |
| Certifications | CE / UL / WEEE / RoHS / REACH |
