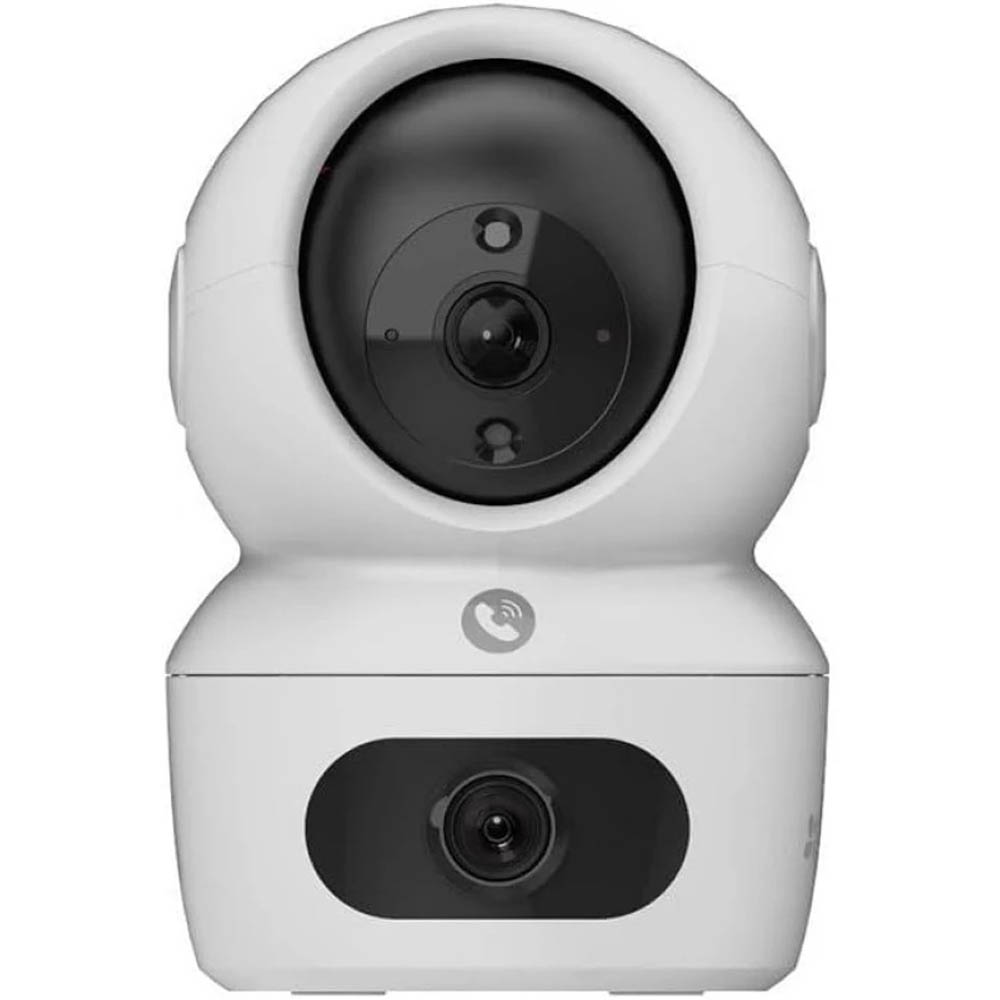

EZVIZ Camera H7c Dual
EZVIZ Smart Home Dual-Lens Pan & Tilt Wi-Fi Camera – 2K⁺ – H7c Dual
Features
- 2K⁺ & 2K⁺ Dual Lenses
- Two-Way Calling with Touch Button
- Co-Detection for Auto Smart Tracking
- Smart Color Night Vision
- More cameras
Experience unparalleled indoor vision with the EZVIZ H7c Dual. Using two powerful lenses to ensures comprehensive coverage from top to bottom, the camera provides whole-room protection like never before.
Equipped with human motion detection, two-way calling, and crystal-clear day/night vision, it keeps you connected to your home from anywhere, and doubles up your sense of safety with much more flexible features.
With EZVIZ’s unique dual-lens technology, the H7c Dual provides next-level protection that’s usually achieved through a multi-camera setup.
It uses a fixed lens and a main pan-and-tilt lens at the same time – the duo works independently or together in a way that is much smarter than your ordinary camera.
specification
Camera
Resolution: Dual 2K+ Resolution
Image Sensor: 1/3″ Progressive Scan CMOS
Shutter Speed: Self-adaptive shutter
Fixed Lens: 2.8mm@F1.6 , view angle: 108°(Diagonal), 92° (Horizontal), 50°(Vertical)
PT Lens 6mm@F1.6 , view angle: 60°(Diagonal), 51° (Horizontal), 28°(Vertical)
Lens Mount: M12
Day & Night: IR-cut filter with auto-switching
DNR: 3D DNR
WDR: Digital WDR
Compression:
Video Compression: H.264/H.265
Video Bit Rate: Adaptive bit rate.
Network
Smart Alarm: Motion Detection, Human Shape Detection, Loud Noise Detection, Patrol Mode Detection
Wi-Fi Pairing: AP paring
Protocol: EZVIZ cloud proprietary protocol
Interface Protocol: EZVIZ cloud proprietary protocol
Max. Resolution: 2560 × 1440
Frame Rate: Max:30fps; Self-Adaptive during network transmission
Interface:
Storage Micro SD card slot (Max. 512G)
Power: TYPE-C
Wired Network: RJ45 X 1 (10M/100M self-adaptive Ethernet port)
Wi-Fi
Standard: IEEE802.11a, IEEE802.11b, 802.11g, 802.11n,802.11ac 802.11ax
Frequency Range 2.4GHz: 2.4 GHz ~ 2.4835 GHz 5GHz: 5.15GHz~5.25GHz
Channel Bandwidth 2.4GHz Supports 20MHz 5GHz Supports 80MHz
Security: WPA-PSK, WPA2-PSK, WPA3-Personal
Transmission Rate: 2.4GHz Max. Rate Support: 11b_11M，11g_54M, 11n_MCS7_20M，
11ax_MCS11_20M 5.15-5.25GHz Max.
Output Power(EIRP): 20 dBm
Antenna Gain: 2.56dBi@2.48GHz，3.18dBi@5.22GHz
General:
Operating Conditions: -10°C to 45°C ( -14 °F to 113 °F ) Humidity 95% or less (non-condensing)
Power Consumption: 8W max
Power Supply: DC 5V/2A
IR Range: MAX. 10 meters (32.81ft)

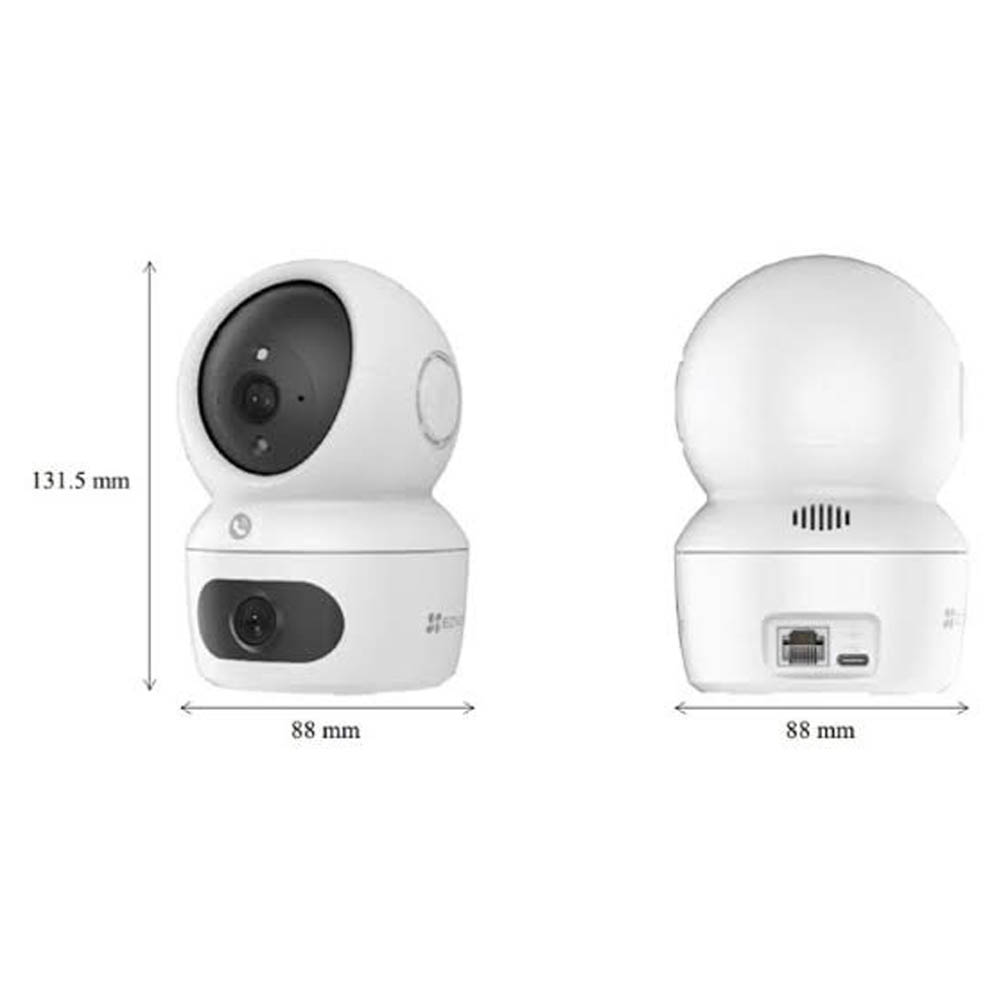

Dimensions: 88 × 88 × 131.5 mm (3.46 × 3.47 ×4.69 in)
Package Dimensions: 200 ×105 ×105 mm (7.87 × 4.13 × 4.13 in)
Net Weight: 270 g (9.52 oz)
Bare Weight 499 g (17.60 oz)
In the box:
– Camera (x1)
– Power Adapter (x1)
– Power Cable (x1)
– Drill Template (x1)
– Mounting Plate (x1)
– Screw Kit (x1)
– Regulatory Information (x1)
– Quick Start Guide (x1)
